USED EQUIPMENT / Microscopy

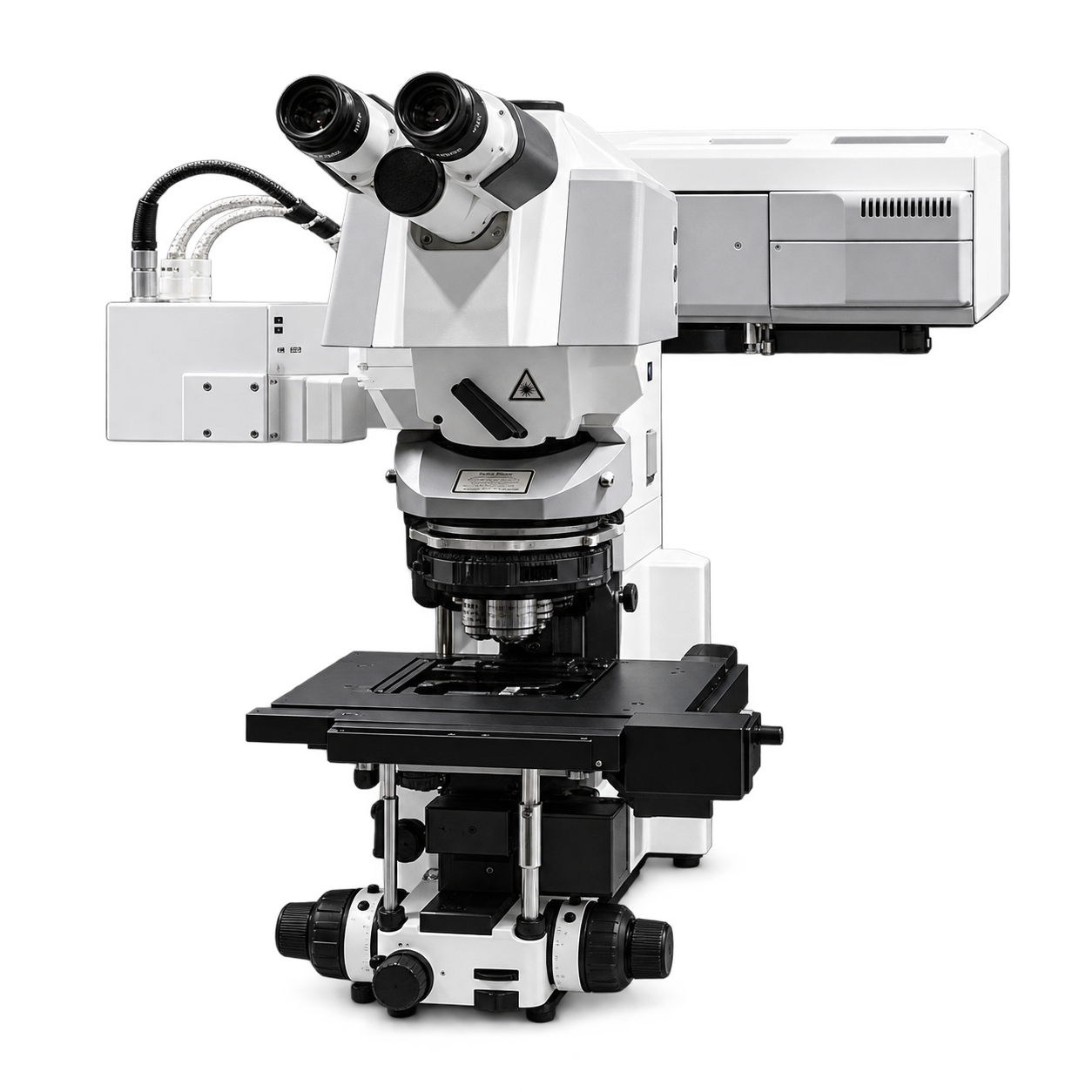

Zeiss LSM 780 NLO
$95,000Asking price
- Instrument type
- Microscopy
- Catalogue reference
- 08
Listed configuration
Microscope & core hardware. Stand: Axio Examiner.Z1 (upright, motorized Z, manual XY). Motorized XY stage: 120 x 80 mm travel, repeatability ±0.25 µm. Real-time autofocus: Definite Focus 2 for NLO. User I/O box: 8 TTL in / 8 TTL out for external trigger and synchronization. Polarization optics: rotatable polarizer + analyzer set for anisotropy imaging. Illumination: X-Cite 120LED widefield lamp with fast shutter. Imaging modes: Point-scanning confocal (VIS), Multiphoton / second-harmonic generation (NLO), Spectral scanning, lambda-stacking, FCS/FCCS, FRAP & photo-activation with galvanometer ROI.
